ASUS-E35M1-I DELUXE

More: Get Quote

Quantity:

* FREE US Shipping. Details
Availability: Usually ships in 24h
(Out of Stock)

Features

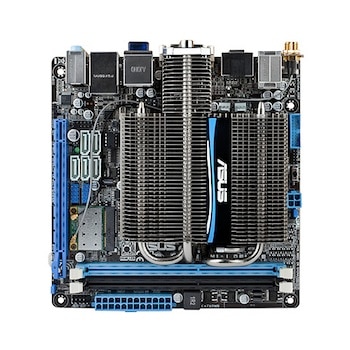

ASUS E35M1-I DELUXE

- AMD Dual Core E350
- 2 x DIMM DDR3, Max. 8GB
- 1 x PS/2 Keyboard
- 1 x DVI
- 1 x HDMI
- Dual Display Support
- 2 x S/PDIF Out (optical & coaxial)
- 1 x LAN(RJ45) port
- 4x USB 2.0/1.1
- 2x USB 3.0
- 1x Bluetooth 3.0
- 2x Antenna
- 24 Pin ATX
- RoHS compliant
- Using both memory slots will interfere with the placement of PicoPSU (models effected: M3ATX, M3ATX-HV, PicoPSU-120-25WI, PicoPSU-80-WI-32)

Downloads

Product Description

Name	ASUS ATE35M1 Mini-ITX
Processor	AMD E350 Hudson
Chipset	AMD Hudson
System Memory	2x DDR3 (MAX 8GB)
Graphics	AMD HD Graphics
Power	24 Pin ATX
Connectors (rear)	1x DVI 1x HDMI 6x SATA 3.0 1x Bluetooth 2x Antenna 1x LAN 10/100/1000MBit
Audio	High Definition Audio
Connectors (internal)	5x Sata 6.0 1x Front Panel HD AUDIO 1x SPIF Connector 1 x 4pin 12V power connector
Included	Asus ION Mainboard I/O ATX rear plate 1x SATA cable 2x Antennas Drivers CD
Form Factor	mini-ITX
