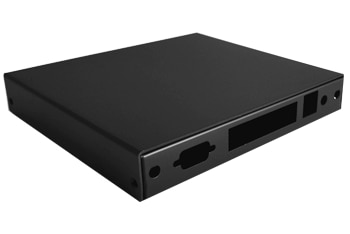

Enclosure 4 LAN, USB for APU 4D4 ***BLACK VERSION***
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features
Enclosure 4 LAN, USB for Alix.2

- 4 LAN, USB model
- 3 LED lights
- Anodized aluminium
- Dimensions: 158 mm wide x 155 mm deep x 28 mm high
- manufactured by PC Engines
- ROHS compliant version
Product Description
Enclosure 4 LAN designed for ALIX.2* boards

Specifications:
Cutouts for 3 LEDs and 1 switch in front, cutouts for DB9, 4 LAN, 2 or 1 SMA connector, DC jack in back. Enclosure made of anodized aluminum. Some units may be painted.

Includes:
- 4 screws to mount system board,
- 4 screws to close enclosure,
- 4 self-adhesive feet,
- 1 or 2 rubber plugs to close unused SMA holes.

Assembly notes:
Tools needed: Phillips screw driver, 5 mm or 3/16" nut driver. Remove hex nuts from DB9 connector of WRAP board. Install CF card. Hold WRAP board with the DB9 connector facing up (so the shell doesn't fall off), then slide the enclosure base over it at a slight angle. Tilt the WRAP board into place and insert all screws and hex nuts. Tip for replacing self-cutting and plastic screws: To find the start of the existing thread, turn screw counterclockwise first until you feel the start.
