Intel D2700DC Mini-ITX

More: Get Quote

Quantity:

* FREE US Shipping. Details
Availability: Usually ships in 24h

Features

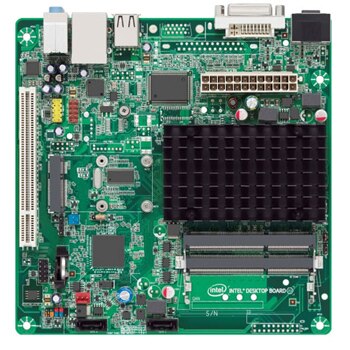

NEW Intel D2700DC Mini-ITX Motherboard

- Dual Atom D2700 2x2.13Ghz w/ Hyperthreading
- Intel NM10 Chipset
- 2x DDR3 SO-DIMM (max 4GB)
- 2x SATA (3GBs)
- 1x miniPCI Express
- 1x DVI-D / 1x HDMI
- 4 USB 2.0
- 1x LAN 10/100/1000MBit
- Recommended PSU: picoPSU-80

Downloads

Product Description

Name	D2700DC
Processor	Intel Atom Processor D2700 (Dual Core) 2.13GHz
Chipset	Intel NM10 Express Chipset
L2 Cache	512 KB x 2 L2 Cashe
System Memory	Single channel DDR3 1066/800 MHz 2x DIMMs (max 4GB)
Graphics	Integrated graphic HDMI & DVI
Power	24 Pin ATX
Connectors (rear)	1x HDMI / 1x DVI 1x LAN 10/100/1000MBit (Realtek) 3x Sound (Line Out, Line In, Microphone) 1x SPDIF 4x USB2.0
Audio	Realtek High Definition Audio (ALC) Incl multi-stream support
Connectors (internal)	1x PCI 1x Mini PCIe AUDIO (Front panel) 3x USB 2x SATA (3GBs)
Included	Drivers CD I/O ATX rear plate 2x SATA cable
Form Factor	mini-ITX (170mm X 170mm) Passive thermal solution
