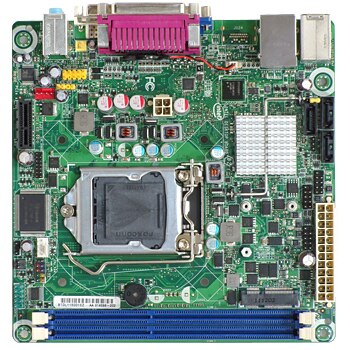

DH61DLB3 Mini-ITX Motherboard


More: Get Quote
Quantity:
* FREE US Shipping. Details
Availability: Usually ships in 24h

Features
Intel DH61DLB3 Mini-ITX Motherboard

- Support 2nd Generation Core i3, i5, i7
- List of compatible processors for DH61DL
- Intel H61Chipset
- 2x DDR3 DIMM (max 4GB)
- 1x DVI-D, 1x VGA for Dual Independent Display
- 3x SATA ports (3GBs)
- 1x PCI express
- 1x Parallel
- 2x USB 2.0, 2x USB 3.0
- 1x LAN 10/100/1000MBit (Realtek)
- Recommended PSU: picoPSU-150
Downloads
Product Description
Name
  • DH61DL
    • Processor
  • Supports Core i series
    • Chipset
  • Intel H61 Express Chipset
    • L2 Cache
  • 512 KB x 2 L2 Cashe
    • System Memory

    2x DIMM DDR3 (max 4GB)

    Graphics
  • VGA + DVI-D Dual Display
    • Power
  • 24 Pin ATX
    • Connectors (rear)
  • 1x D-SUB15 (VGA), 1x DVI
  • 1x LAN 10/100/1000MBit (Realtek)
  • 3x Sound (Line Out, Line In, Microphone)
  • 2x PS2
  • 4x USB2.0
    • Audio
  • Realtek High Definition Audio (ALC) Incl multi-stream support
    • Connectors (internal)
  • 1x PCI  express
  • 1x Serail port
  • AUDIO (SPDIF)
  • 6x USB
  • 1x Parallel
    • Included
  • I/O ATX rear plate
  • SATA cable
  • Drivers CD
    • Form Factor
  • mini-ITX (170mm X 170mm)
    • Related Items
    M350 Universal Mini-ITX enclosure

    M350 Universal Mini-ITX case

    New! 4pin mini-Din AC adapters compatible

    Now available in SILVER

    - Enclosure available with PSU kit
    - Smallest, Universal mini-ITX case
    - Fanless, natural convection mini-ITX case design
    - Enclosure fits all Intel stock CPU heatsink
    - Hidden area for USB / WIFI / Storage
    - Smart power button
    - Vesa, DIN-Rail, Wall Mount chassis options
    - SMA antenna hole
    - Up to two 2.5" drives, **one HDD bracket included**
     (additional mounting bracket)
    - Size 192 x 210 x 62mm
    - Volume (L) = 2.5L
    - Area for custom OEM logo
    - Superior RFI shileding capabilities
    - ROHS compliant
    Price: $39.95
    Quantity:
    picoPSU-150-XT

    PicoPSU-150-xt 12V DC-DC ATX power supply

    - 24pin DC-DC ATX PSU
    - 150 Watts
    - 12V input
    - 100% silent, fanless
    - Over 96% efficiency
    - Plugs into 24 pin ATX connector
    - D945GCLF2 friendly (4 pin P4 cable)
    - 12V-ATX cable (4 pin power)
    - Long Life, Solid Polymer Caps, Japan
    - Configurable wire harness
    - manufactured by mini-box.com
    - ROHS compliant version
    - PicoPSU + Adapter Bundle
    - US Pat. no 7,539,023
    Price: $45.00
    Quantity:
    picoPSU-160-XT (Out of Stock)

    NEW! picoPSU-160-XT, 160W / 200 Watt peak, 12V input DC-DC ATX Power Supply

    - High Reliability DC-DC ATX PSU
    - Tough design, high temp operation
    - OSCON SPVS capacitors, Japan
    - 160 watt / 200 watt peak, 24pin
    - No min. loading requirement
    - 4mOhm / 20A mosfet for 12V rail
    - 100% silent, fanless
    - manufactured by mini-box.com
    - ROHS compliant version
    - US Pat. no 7,539,023
    Price: $49.50
    Quantity:
    picoPSU-150-XT + 150W Adapter Power Kit (Out of Stock)

    PicoPSU-150-XT, 150W Power Kit

    - Tiniest DC-DC ATX PSU: picoPSU-150-XT
    - Power adapter: AC-DC 12V, 12.5A Switching Power Adapter (4pin DIN connection)
    - 12V-ATX cable (4 pin power)
    - Fits 24 pin mini-ITX boards
    - Configurable wire harness
    - Power cord
    - NOTE: Will not work with M350/M300/M200 enclosures due to 4 pin din connection
    - ROHS compliant version
    Price: $69.50
    Quantity:
    INTEL CPU Corei3-2100

    INTEL CPU Corei3-2100 3.10 3M BX

    - Cores:     2
    - Threads: 4
    - Clock Speed: 3.1 GHz
    - Cash: 3MB
    Price: $129.00
    Quantity:
    2GB DDR3 Memory (Out of Stock)

    2GB DDR3 DIMM

    - Standard 240-Pin Layout
    - 1333MHz
    Price: $38.00
    Quantity:
    160GB SATA 2.5" HDD

    160GB 2.5" HDD

    - Western Digital Scorpio Blue
    - 2.5-inch SATA Hard Drives
    - 150 MB/s, 8 MB Cache, 5400 RPM
    - Read Seek Time : 12.0 ms
    - Track-To-Track Seek Time : 2.0 ms (average)
    Price: $64.00
    Quantity:
