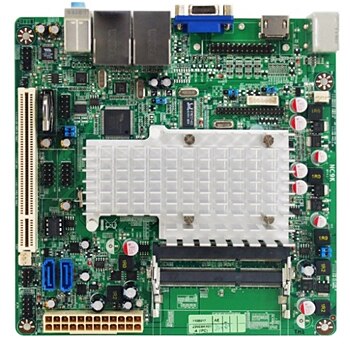

Jetway JNC9KDL-2700

More: Get Quote

Quantity:

* FREE US Shipping. Details
Availability: Usually ships in 24h

Features

NEW Jetway JNC9KDL-2700

- Dual Atom D2700 2x2.13Ghz
- Intel NM10 Chipset
- 2x DDR3 SO-DIMM (max 4GB)
- 1x HDMI, 1x VGA
- Dual Independent Displays
- 4x USB 2.0
- 2x LAN 10/100/1000MBit
- 24 bit Single Channel LVDS, Parallel Header
- 1x PCI
- 2x SATA port

Downloads

Product Description

Processor	Intel Cedar Trail 2700
Chipset	Intel NM10 chipset
Expansion Slot	PCI
System Memory	2x SODDR3 Expandable to 4 GB Support SODDR3 1066MHz
Storage	2 Serial ATA2 3 Gb/s
LAN	2x Gigabit LAN
Audio	VIA VT1705 6-Channel HD Audio
Rear I/O	PS/2 Keyboard&Mouse D-Sub 15 pin VGA USB x 4 2 Ethernet Ports HDMI, VGA Audio I/O ports (Line-in, mic, and Line out)
Internal I/O	2 * USB Header 1x 24bit LVDS 1x Serial Header 1x Paralles Header
Form Factor	17 cm x 17 cm
