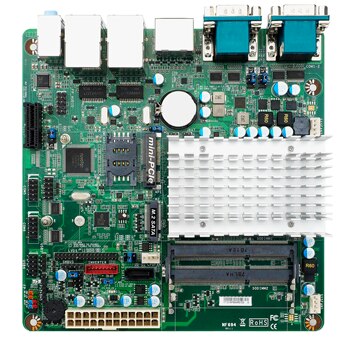

Jetway ​​JNF694-4200


More: Get Quote
Quantity:
* FREE US Shipping. Details
Availability: Usually ships in 24h

Features
- Pentium Quad Core N4200 (up to 2.5GHz) 6W TDP
- 2x SODDR3-L, 8GB Max
1x HDMI, 1x Display, 6x COM (4 Rear, 2 via Header)
- 4x USB 3.0

- 2x Ethernet Port

- 1x SATA3 (6.0 Gb/s)

- 1x miniPCIe (Full Size)
- 1x PCIe x1 (2.0)
- 1x LVDS (max. 1920 x 1080@60Hz resolution)
- 1x M.2 SATA (M KEY, 2242/2260)
- 1x SIM Card Holder
- Intel HD Graphics 400, 320MHz - 640MHz

- Realtek ALC662VD HD Audio
- Watchdog Timer
- Embedded Long-life Series, Lifecycle through Q1'2023
Product Description
Processor
  • Fanless Intel® Celeron N4200 SoC, 2.5GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support
  • Chipset
  • Apollo Lake
  • Expansion Slot
  • 1 x PCI Express x1 slot
  • 1 x Full-size Mini-PCI Express slot, SIM Card socket
  • System Memory
  • 2 x 204-pin SO-DIMM slot supporting DDR3L-1600* up to 8GB total, 1.35V required
  • *1600MHz memory runs at 1600MHz, 1333MHz memory runs at 1066MHz
    *1066MHz memory not supported
    Storage
  • 1 x SATA3 6Gb/s port
  • 1 x M.2 SATA M-key 2242/2260 slot
  • LAN
  • 2 x Realtek RTL8111H PCI-E Gigabit LAN
  • Audio
  • Realtek ALC662 HD Audio
  • Rear I/O
  • 4 x USB 3.0 ports, 3 x USB 2.0 (internal)
  • HDMI, Display, LVDS
  • 2 x RJ-45 LAN ports
  • 2 x Serial ports (1 x RS232, 1 x RS232/422/485)
  • 3x COM Ports
  • 24-pin ATX power connector
  • Internal I/O
  • 3 x USB headers 2.0 ports
  • 24bit LVDS & Inverter, AT/ATX power switch mode, SIM card socket
  • 2 x Serial headers
  • 8-bit GPIO header, Chassis Intrusion header, PS/2 KB/MS header
  • Option: Onboard TPM 2.0 or TPM 1.2
  • Form Factor
  • Mini-ITX Form Factor 17 cm x 17 cm
  • Temperature
  • Operating Temperature 0~60 º C, Storage Temperature -20-85 º C
