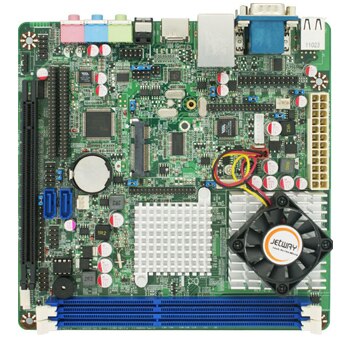

Jetway NC74-2007


More: Get Quote
Quantity:
* FREE US Shipping. Details
Availability: Usually ships in 24h
(Out of Stock)

Features
Jetway NC74-2007

- VIA Nano L2007 CPU
- VIA VX 900H Chipset
- 2x DDR3 up to 8GB

- 4x USB 2.0
- 1x HDMI
- 1x MiniPCIe
- 24 bit single/dual channel LVDS
- Multiple daughter board options
- Dimensions : 170x170mm
- RoHS compliant
Product Description
Processor
  • VIA Nano L2007
  • Chipset
  • VIA VX900Hchipset
  • Expansion Slot
  • Support 1x Daugtherboard
  • System Memory
  • 2x DDR3
  • Expandable to 8 GB
  • Support SODDR3 1066MHz
  • Storage
  • 2 Serial ATA2 3 Gb/s
  • LAN
  •  2x Gigabit LAN
  • Audio
  • VIA VT1705 HD Audio Code 6-Channel
  • Rear I/O
  • 1x HDMI
  • 1x D-Sub 15 pin VGA
  • 4x USB
  • 1x Ethernet Ports
  • 1x COM port
  • Audio I/O ports (Line-in, mic, and Line out)
  • Internal I/O
  • Embedded 3 * USB 2.0/1.1
  • 1x 32 pin LVDS
  • 1x 8 bit GPIO Header
  • Jetway Daughter Boards Expansion Connector
  • Form Factor
  • 17 cm x 17 cm
