Jetway ​​NF596-3160


More: Get Quote
Quantity:
* FREE US Shipping. Details
Availability: Usually ships in 24h

Features
- Celeron Quad Core N3160 (up to 2.24GHz). 6W TDP
- 1x SODDR3-L, 8GB Max
1x HDMI, 1x DVI-D, 2x COM
4x USB 3.0

- 2x Ethernet Port

- 1x SATA3 (6.0 Gb/s)

- 1x mSATA + 1x miniPCIe
- 1x PCIe x1 (2.0)
- 1x SIM card Socket
- Intel HD Graphics, 320MHz - 640MHz

- Realtek ALC662 HD Audio
- 12v DC Jack (2.5/5.5mm)
- Embedded Long-life Series, Lifecycle through Q1'2023
Product Description

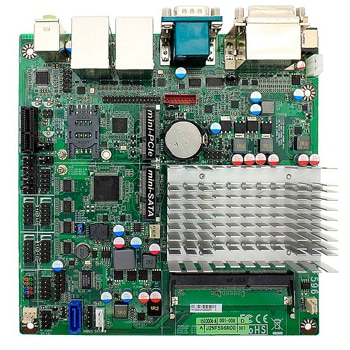

Jetway NF596-3160 mini-ITX Intel Celeron
Processor
  • Intel® Celeron N3160, Quad-Core 1.6GHz, 2.08GHz Burst
  • Expansion Slot
  • PCI Express 2.0 x1 slot
  • 1 x Full-size Mini-PCI Express slot, SIM Card Socket
  • System Memory
  • 1 x 204-pin SODIMM DDR3L-1600 Dual Channel 1.35V required (up to 8 GB)
  • Storage
  • 1 x SATA3 6Gb/s port
  • 1 x mSATA slot
  • Ethernet LAN
  • 2 x Realtek RTL8111G Gigabit Ethernet with Enhanced Surge Protection
  • Audio
  • Realtek ALC662 HD Audio
  • LVDS
  • 24-bits Dual Channel LVDS connector/Inverter
  • USB
  • 4 x USB 3.0
  • Special Features
  • Support AHCI, ACPI S3
  • Support CPU Smart FAN
  • Support Watchdog Timer 10-255 min/sec
  • Rear Panel I/O
  • 1 x PS/2 Mouse/Keyboard header
  • 4 x USB 3.0 ports
  • 1 x DVI-D port
  • 1 x HDMI port
  • 2 x RJ-45 LAN ports
  • +12V DC-in jack (1-pin 2.5mm ID/5.5mm OD)
  • Internal I/O
  • 2 x USB headers for 3 x USB 2.0 ports;
  • 4 x Serial headers (4 x RS232), SMBUS (I2C) headerr
  • 24bit LVDS & Inverter, AT/ATX power switch mode, SIM card socket
  • 8-bit GPIO header, Chassis Intrusion header, PS/2 KB/MS header
  • Alternate 2-pin internal power connector
  • Form Factor
  • 17 cm x 17 cm
  • Temperature
  • Operating Temperature 0~60 º C
  • Storage Temperature -20-85 º C
