Jetway NF99FL-525 atom

More: Get Quote
Quantity:
* FREE US Shipping. Details
Availability: Usually ships in 24h

Features

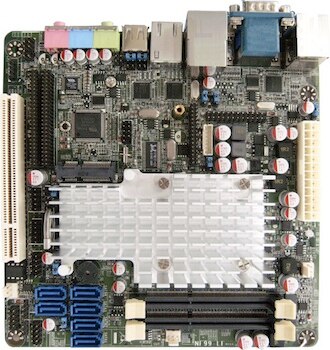

Jetway NF99FL-525

- Intel Atom D525 @ 1.8GHz Dual-Core
- Intel NM10 Chipset
- 2x DDR3 SO-DIMM (max 4GB)
- 1x VGA / 1x COM
- 2x LAN 10/100/1000MBit
- Expansion slot for additional daughter board
- 3x USB 2.0 / 2x USB 3.0
- 1x 18 bit Single Channel LVDS
- 1x miniPCI Express
- 6x SATA port
Downloads
Product Description
Processor
  • Intel Atom 525
    • Chipset
  • Intel ICH9R chipset
    • Expansion Slot
  • Support 1x Daugtherboard
    • System Memory
  • 2x SODDR3
  • Expandable to 4 GB
  • Support SODDR3 1066MHz
    • Storage
  • 6 Serial ATA2 3 Gb/s
    • LAN
  •  2x Gigabit LAN
    • Audio
  • VIA VT1705 6-Channel HD Audio
    • Rear I/O
  • PS/2 Keyboard&Mouse
  • D-Sub 15 pin VGA
  • USB x 5
  • 2 Ethernet Ports
  • COM port
  • Audio I/O ports (Line-in, mic, and Line out)
    • Internal I/O
  • Embedded 3 * USB 2.0/1.1
  • 1x 32 pin LVDS
  • 1x 8 bit GPIO Header
  • Jetway Daughter Boards Expansion Connector
    • Form Factor
  • 17 cm x 17 cm
