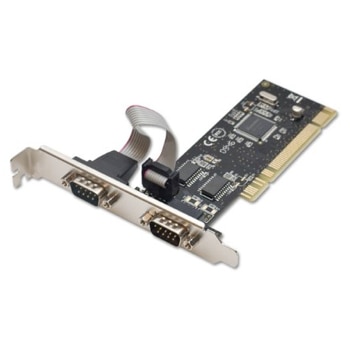

PCI 2 DB-9 Serial (SD-PCI15025)
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features
PCI SYBA 2 DB-9 Serial (SD-PCI15025)

- SystemBase SB16C1052PCI Chipset
- Easy Plug & installation
- Automatically Selects IRQ and I/O Address
- Fully Compliant with PCI Local Bus Specification Revision 2.3
- Supports PCI Power Management
- Supports PCI IRQ Sharing, Saves Valuable Resources for Other Add-on Cards
- Compatible with Industrial Standard 16C550 UART
- On-chip 256-byte Depth FIFO in Transmit & Receive Paths of Each Port
- Fast Data Rate up to 115.2Kbps on Each Port
- Supports Hardware and Software Flow Control
- Supports 5-, 6-, 7-, 8-bit Serial Format
- Supports Even, Odd, None, Space & Mark Parity
- Supports 1, 1.5, or 2 Stop Bit Operation
- Dimension: L 7 x W 6 x H 1.5 inch
Product Description
PCI 2 DB-9 Serial (SD-PCI15025)

- SystemBase SB16C1052PCI Chipset
- Easy Plug & installation
- Automatically Selects IRQ and I/O Address
- Fully Compliant with PCI Local Bus Specification Revision 2.3
- Supports PCI Power Management
- Supports PCI IRQ Sharing, Saves Valuable Resources for Other Add-on Cards
- Compatible with Industrial Standard 16C550 UART
- On-chip 256-byte Depth FIFO in Transmit & Receive Paths of Each Port
- Fast Data Rate up to 115.2Kbps on Each Port
- Supports Hardware and Software Flow Control
- Supports 5-, 6-, 7-, 8-bit Serial Format
- Supports Even, Odd, None, Space & Mark Parity
- Supports 1, 1.5, or 2 Stop Bit Operation
- Dimension: L 7 x W 6 x H 1.5 inch

Windows 7
Vista
Windows XP
Windows 98SE
Windows ME
Windows 2000
Server 2003
Server 2008
(Unsigned driver for Windows 64-bit)
