Multi-Input video capture card
|
|
 More: Get Quote
Availability: Usually ships in 24h. (Out of Stock)
| Features |

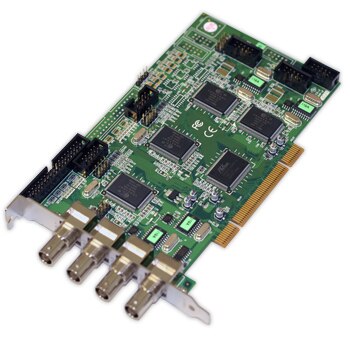

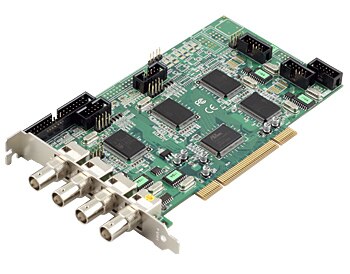

Spectra8 multi-input video capture card
- Single standard PCI card
- Plug and Play, four channel video capture card
- BT878 video capture chipset, low latency DMA access
- Video capture size up to 768x576
- On-board video inputs: 4 BNC Connector
- External PCI bracket expansion card with 4 additional BNC inputs
- Power consumption: <5W
- Board size 96mmx157mm
|
|
|
|
| Product Details |
Spectra8 multi-input video capture card is the next generation of multi-input video capture cards allowing you to build digital surveillance systems using multi input video frame grabbing up to 120fps (4X30) in PAL/SECAM/NTSC. Based on the popular Conexant BT878 chips, Spectra8 has ample driver support on multiple platforms such as Win 98/ME/2000/XP, Unix and Linux 2.2, 2.4 and 2.6. In Windows, each frame grabber channel has it's own WDM driver, allowing you to capture from 4 individual video channels.
The Spectra8 multiple input frame grabber card works with all major encoder applications such as Producer, Helix Producer and Windows Media Encoder 9. Get professional video capture quality and features seen only on high-end cards at a very affordable price. Read more
Using an additional PCI expansion card, the Spectra8 video frame grabber card will allow you to capture from 8 simultaneous video inputs. However, when used in this mode, the FPS per channel will decrease to 10-15. You must have develop custom software in order to do capture video from 8 inputs, SDK provided.
Applications
- Video streaming (single and multi-channel)
- Multi input video capture
- Corporate video communications
- Distance learning
- Multi input video surveillance (security)
- Video presentations
- Desktop video conferencing
- Security frame grabber
- General purpose multi input frame grabber
General features
- Supports NTSC/PAL/SECAM video with resolutions up to 768x576
- Works with monochrome and color NTSC/PAL/SECAM camers
- Supports complex video clipping of video source
- Zero wait state PCI burst writes
- Multiple YCrCb and RGB pixel formats
- Supports planar YUV data format
- Windows 95/98/Me, 2000, NT and XP support
- Unix, Linux 2.2, 2.4 and 2.6 support via BTTV driver
- Works with any major encoder and frame grabber applications. Read more
|
|
|
|
