ZOTAC-H67ITX-C-E

More: Get Quote

Quantity:

* FREE US Shipping. Details
Availability: Usually ships in 24h
(Out of Stock)

Features

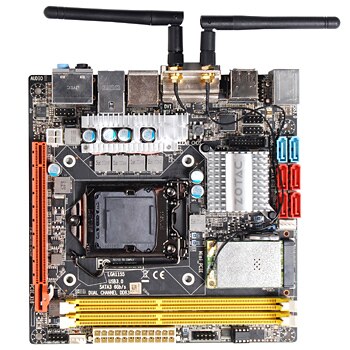

Zotac-H67ITX-C-E LGA 1155 Intel H67

- LGA 1155
- Support Core i7 / i5 / i3 / Pentium (LGA1155)
- List of compatible processors for H67C-E
- 4x Rear USB 2.0, 2x USB 3.0
- 4x SATA3.0, 2x SATA6.0
- 1x eSATA / 3Gb/s
- 1x DVI / HDMI / Display Port
- 1x miniPCI Express (1x occupied by WIFI card)
- 1x PCIe x16
- 2x DDR3 1333/1066 / MAX 16GB
- 1 x 1x 10/100/1000 Mbit LAN
- High Definition Audio
- 24 PIN ATX
- WiFi card and antenna included
- RoHS compliant

Downloads

Product Description

Name	Zotac-H67ITX-C-E LGA 1155 Intel H67
Processor	Core i-series
Chipset	Intel H67
System Memory	2x DDR3 (MAX 16GB)
Graphics	Intel graphics Accelerator
Power	24 PIN ATX
Connectors (rear)	1x eSATA 1x HDMI 1x DVI 1x Digital S/PDIF 6x USB 2.0 1x LAN 10/100/1000MBit
Audio	High Definition Audio
Connectors (internal)	PCI -e AUDIO 6 x USB 6 x SATA
Included	1x DVI to VGA adapter 2x Pigtails 2x Antennas 1x I/O shield 4x SATA cables 1x USB 3.0 Bracket
Form Factor	mini-ITX
