Indoor enclosure for ALIX.3 Boards
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features
Indoor enclosure for ALIX.3 Boards

- Box2C comes with one I/O plate, which accomodates both Alix 3D2 and 3D3, to cover one end of the box.
- Pending on the Alix board selected, bracket 3D2 or 3D3 must be purchased to cover other end.
- Dimensions: 113 x 163 x 30 mm
- ROHS compliant
- manufactured by PC Engines
Product Description
Indoor enclosure designed for ALIX.3 Boards

Specifications:
Aluminum Enclosure designed for ALIX.3* boards.
**I/O plates for ALIX3* boards need to be purchased separately. (the plate that comes with the case, only covers up one side of the box, the other side depends on the ALIX3* board purchased)

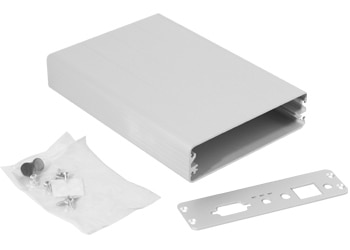

Includes:
- Aluminium extrusion,
- 1.5 mm Al end plates,
Cutouts for 1 LAN, DC jack, 2 SMA, DB9, 3 LEDs in back.
screws,
rubber feet,
rubber plugs for unused SMA openings.

Assembly notes:
Tools needed: Phillips screw driver, 5 mm or 3/16" nut driver. Remove hex nuts from DB9 connector of WRAP board. Mount back plate to WRAP board, replace hex nuts. Slide WRAP board into the enclosure, fasten the back plate using 4 screws. Tip for reinserting self-cutting and plastic screws: To find the start of the existing thread, turn screw counterclockwise first until you feel the start.
