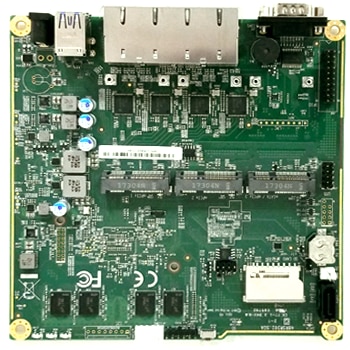

APU.4D4 Board with 4 GigE, 3 miniPCIe, 1 mSATA, and USB

AMD Embedded G Series: GX-412TC
1 GHz Quad Jaguar Core / 64Bit / 2 MB L2 Cach
Built in 4GB DDR3 1333 DRAM
USB port / RTC battery
4x Ethernet Ports
Storage: SD Card, USB, mSATA
Power: DC jack, min. 6-12W of 12V DC power
Expansion: 2x miniPCI express slot, LPC bus, COM2
Connectivity: 4 Gigabit Ethernet channels (Intel i211AT), DB9 serial port
Board size: 152 x 152mm (6x6in)
Firmware: Core boot open source system BIOS. Support iPXE and USB boot.
Black enclosure recommended for additional cooling

Heat spreader guide

case1d4-U BLACK Enclosure 4 LAN, USB for Alix.2 - 4 LAN, USB model  - 3 LED lights - Anodized aluminium - Dimensions: 158 mm wide x 155 mm deep x 28 mm high - manufactured by PC Engines - ROHS compliant version Price: $‎16.99 Quantity:    12V/2A 24W AC-DC Power Adapter AC-DC 12V, 2A/ 24W Switching Power Adapter (110/220V) - Model No. EA1019HHUS(03) - High Efficiency AC adapter - AC INPUT: 100 -240 VAC - DC OUTPUT: 12V, 2A, high power (24watt) - 5.5mm/2.5mm barrel power jack - Cable: 20AWG.  6FT - Works with Alix APU boards or low power boards. - RoHS compliant - UL/CUL/FCC/BSMI Price: $‎14.95 Quantity:    mSATA Innodisk DEMSR-32GDK1GC1SL-B089 (Out of Stock) Innodisk mSATA 3TE7 32GB - 3D TLC Flash type - SATA-III (6.0 Gb/s) mSATA interface - Sequential R/W (MB/sec, max.): 560 / 520 MB/s - Thermal sensor included - ATA security - S.M.A.R.T - 3 Million Hours MTBF - Operating Temperature: 0C to 70C - Storage Temperature: -40C to 85C - Max. Power Consumption: 2W - L=50.80mm, W=29.8mm, H=3.3mm Price: $‎29.00 Quantity:    mSATA Innodisk DEMSR-64GDK1GC1SL-B089 (Out of Stock) Innodisk mSATA 3TE7 64GB - 3D TLC Flash type - SATA-III (6.0 Gb/s) mSATA interface - Sequential R/W (MB/sec, max.) 560 / 520  - 3 Million Hours MTBF - Operating Temperature: 0C to 70C - Storage Temperature: -40C to 85C - Supports S.M.A.R.T., ATA Security - L=50.80mm, W=29.85mm, H=3.7mm Price: $‎49.00 Quantity:    mSATA Kingston SUV500MS/120G Kingston SUV500MS/120G - High Performance MLC NAND Flash - SATA-III (6.0 Gbps) mSATA interface - Sequential Read/Write Max up to 520/320MB/s - 1 Million Hours MTBF - Operating Temperature: 0C to 70C - Storage Temperature: -55C to 85C - Supports SMART, TRIM, Intel's SRT - L=50.80mm, W=29.85mm, H=3.6mm Price: $‎79.00 Quantity:    Intel Wireless AC 7260 Intel Wireless AC 7260 H/T - WIFI (2.4 GHz, 5 GHz) + Bluetooth 4.0 - Up to 867 Mbps speed with dual stream (2x2) - IEEE 802.11ac/a/b/g/n Wi-Fi plus Bluetooth* wireless adapter - Supports Windows 7, 8, 10, Linux Note: To access Bluetooth, additional set of antenna + pigtail would be required. Price: $‎19.00 Quantity:    Mini PCI-E Half to Full Size Extension Bracket Mini PCI-E Half to Full Size Extension Card Wireless WIFI PCI Adapter Bracket - Convert any half size miniPCI-e to FULL size miniPCI-e - 2 screws included Price: $‎6.95 Quantity:    Wireless Antenna SMA reverse +5dBi Wireless Dipole Dual Band Antenna SMA reverse +5dBi - 2.4 GHz wireless antenna - 5 dBi nominal gain - 90 degree swivel design - Mounting hole size: 7mm - Length: 175mm (tilted) - Length: 198mm (straight) - RoHS Compliant Price: $‎5.95 Quantity:    Wireless Antenna SMA reverse +2dBi Wireless Dipole Dual Band Antenna SMA reverse +2dBi - 2.4 GHz wireless antenna - 2 dBi nominal gain - IEEE 802.11a+b/g Wireless LAN - 90 degree swivel design - Mounting hole size: 7mm - Length: 87mm (tilted) - Length: 108.5mm (straight) - RoHS Compliant Price: $‎4.95 Quantity:
