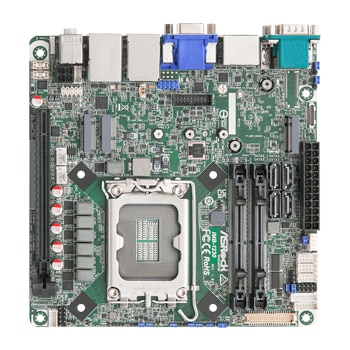

ASRock IMB-1230 Mini-ITX motherboard

ASRock IMB-1230

Quantity:

Availability
Usually ships in 24h

Volume quantity
Get Quote

Features

IMB-1230 Mini-ITX motherboard

Intel® 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors with H610 chipset)
(CPU NOT INCLUDED)

- List of compatible processors
- 2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
- 1 x PCIe x16 (Gen4), 2 x USB 3.2 Gen2, 1 x USB 3.2 Gen1, 5 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 1 x M.2 Key M, 5 x COM, 4 x SATA3
- 2 x Intel 2.5 Gigabit LAN
- Supports Triple display, 1 x HDMI 2.0b, 2 x DP 1.4a, 1 x LVDS or eDP, 1 x VGA
- TPM 2.0 onboard IC
- ATX-PWR (24+4-pin) and +12V DC-In co-design

Downloads

Product Description

Name	ASRock-IMB-1230
Processor	Support Intel® 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W
Chipset	Intel® H610
System Memory	Dual Channel DDR4 3200 MHz 64GB (32 GB per DIMM) 2 x 260-pin SO-DIMM
Graphics	Intel® UHD Graphics DisplayPort: 1.4a, DP++ Max resolution up to 4096x2160@60Hz HDMI: 2.0b Max resolution up to 4096x2160@60Hz eDP: Max resolution up to 1920 x 1200@60Hz LVDS: Dual channel 24 bit up to 1920x1200@60Hz VGA: Max resolution up to 1920 x 1200@60Hz Multidisplay: Triple Display
Power	Input PWR: ATX PWR (24+4-pin) and +12V DC-In co-design Power On: AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
Connectors (rear)	1 x HDMI 2.0b 2 x DP 1.4a++ 1 x VGA 2 x 2.5 Gigabit LAN 2 x USB 3.2 (Gen2) , 2 x USB 2.0 Audio: 2 (Mic-in, Line-out) COM1, COM2 (RS-232/422/485)
LAN	2 x RJ-45 Controller/ Speed: LAN1: Intel® I225LM with 10/100/1000/2500 Mbps LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
Connectors (internal)	USB: 1 x USB 3.2 Gen1 (1 x USB 3.2 header) 3 x USB 2.0 (1 x 2.54 pitch header) COM: COM3, COM4, COM5 (RS-232) GPIO: 4 x GPI, 4 x GPO TPM 2.0 onboard IC 1 x LVDS 1 x eDP 1 x SATA PWR Output 1 x Speaker Header
Included	1 x I/O Shield (13G020780000AK) 3 x SCREW M2*2,D=5 (13G020302031AK)
Form Factor	Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)
