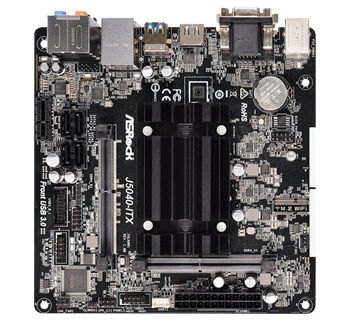

MBD-ASRock J5040-ITX
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features
- Intel Quad-Core Pentium Silver Processor J5040 (up to 3.2 GHz)
- 2 x DDR4 SO-DIMM Slots
- Supports DDR4 2400 / 2133 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB
- 1x D-Sub, 1x HDMI, 1x DVI-D
- 2x USB 2.0, 2x USB 3.1
1x Ethernet Port
- 4x SATA3 (6.0 Gb/s)
- 1x PCIe x1 (2.0)
- 1x M.2 Socket (Key E) supports type 2230 WiFi/BT module
- 1 x Optical SPDIF Out
- Integrated Intel HD Graphics 605. Supports Triple Monitor
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
- Supports Full Spike Protection, ASRock Live Update & APP Shop
- Supports Win10 64bit. Ubuntu
Downloads
Product Description
Processor
  • Intel® Quad-Core Pentium® Silver Processor J5040 (up to 3.2 GHz)
Expansion Slot
  • 1 x PCI Express 2.0 x1
System Memory
  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 SO-DIMM Slots
    Supports DDR4 2400 / 2133 non-ECC, un-buffered memory

  • Max. capacity of system memory: 8GB
Storage
  • 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
  • 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plu
LAN
  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111H
Audio
  • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
Rear I/O
  • 1 x HDMI Port
  • 1 x DVI-D Port
  • 1 x D-Sub Port
  • 1 x PS/2 Keyboard Port
  • 1 x PS/2 Mouse Port
Internal I/O
  • 1 x COM Port Header
  • 1 x Chassis Intrusion and Speaker Header
  • 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
  • * USB3_0_1 and USB_0_1 cannot be occupied simultaneously. Please connect a USB cable to one of these headers only
Form Factor
  • Mini-ITX Form Factor 17 cm x 17 cm
Certification
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
