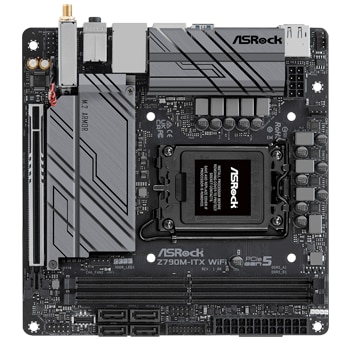

ASRock Z790M-ITX
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features
Z790M-ITX WiFi

- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (CPU NOT INCLUDED)
- 7+1+1 Phase Power Design, Dr.MOS for VCore+GT
- List of compatible processors
- 2 x DDR5 DIMMs (Supports Dual Channel, up to 7000+ OC)
- 1 PCIe 5.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear),
- 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front)
- Intel® 2.5G LAN, Intel® 1G LAN
- 802.11ax Wi-Fi 6E + Bluetooth 5.3
- RoHS compliant
Downloads
Product Description
Z790M-ITX WiFi
Name
  • Z790M-ITX WiFi
    • Processor
  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
  • Supports Intel® Thermal Velocity Boost (TVB)
  • Supports Intel® Adaptive Boost Technology (ABT)
    • Chipset
  • Intel® Z790
    • System Memory
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)*
  • Max. capacity of system memory: 128GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0
    • *1DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.
    Graphics
  • Intel® Xe Graphics Architecture (Gen 12)
  • 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
  • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
    • *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    Power
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    • Connectors (rear)
  • 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x Optical SPDIF Out Port
  • 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
  • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  • 1 x USB 2.0 Port
  • 2 x RJ-45 LAN Ports
  • 1 x Line Out Jack (Gold Audio Jack)
  • x Microphone Input Jack (Gold Audio Jack)
    • LAN
  • 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)
  • 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
    • Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
    • Connectors
  • 1 x eDP Signal Connector
  • 1 x RGB LED Header*
  • 1 x Addressable LED Header**
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 2 x Chassis Fan Connectors (4-pin)****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*****
    • *Supports in total up to 12V/3A, 36W LED Strip
    **Supports in total up to 5V/3A, 15W LED Strip
    ***CPU_FAN1/WP supports the fan power up to 2A (24W).
    CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
    ****CHA_FAN1~2 support the fan power up to 1A (12W).
    *****Actual speed depends on USB devices and extension cable in the chassis.
    Included
  • 1 x User Manual
  • 1 x I/O Shield
  • 2 x SATA Data Cables
  • 2 x ASRock WiFi 2.4/5/6 GHz Antennas
  • 2 x Screws for M.2 Sockets
    • Form Factor
  • mini-ITX
