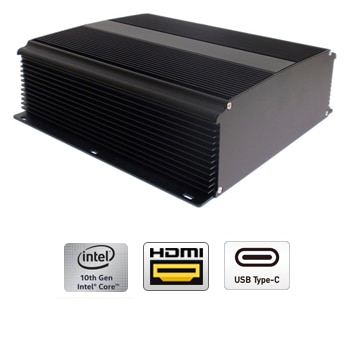

CarPC enclosure with ASRock H570M, Intel core i3, i5 up to 4.3 GHz, HDMI, Display Port, 6x USB, 802.11 AC

(Out of Stock)
Configure your system
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features
- Universal CarPC mini-ITX case
- Suitable M2-ATX, 160w output, 6v to 24v wide input Intelligent Automotive DC-DC Car PC Power Supply
- ASRock H570M-ITX/ac Mini-ITX motherboard
- i3-10100 or i5-10400 Comet Lake
- 1x Display Port 1.4, 1x HDMI
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
- 3 x USB 2.0 Port (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
- 4 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- Supports Raid 0,1,5,10 for SATA storage devices
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
- 2 x Antenna Ports
- Just Add RAM and Hard Drive To Complete Your System
- RoHS Compliant

Configure your system

Product Description

New!
Fully Assembled PC with universal CarPC mini-ITX enclosure, ASRock-H570M ITX/ac mini-itx motherboard, Intel Comet Lake 10th gen CPU, M2-ATX- 160w output, 6v to 24v wide input Intelligent Automotive DC-DC Car PC Power Supply

Black Box Mobile Mini ITX Enclosure for Car PC
- Universal mini-ITX CarPC case
- Anodized Aluminum

M2-ATX, 160w output, 6v to 24v wide input
- Intelligent Automotive DC-DC Car PC Power Supply

ASRock H570M-ITX/ac Mini-ITX motherboard
- i3-10100 or i5-10400 Comet Lake
- 1x Display Port 1.4, 1x HDMI
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
- 3 x USB 2.0 Port (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
- 4 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- Supports Raid 0,1,5,10 for SATA storage devices
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
- 2 x Antenna Ports


Mini-Box M350 Barebone System Windows 10 OS option






Fully Assembled PC with CarPC enclosure and ASRock-H570M ITX/ac mini-itx motherboard comes with the option to choose Windows Professional, separately or preinstalled.

NOTE: Conditions for returning systems with Windows OS preinstalled by Mini-Box.com:
- Refunds are allowed only within 30 days from purchase, a charge of 15% will be applied.
- After 30 days, only exchanges for defective products are allowed (no credits), and it must be with same motherboard.
