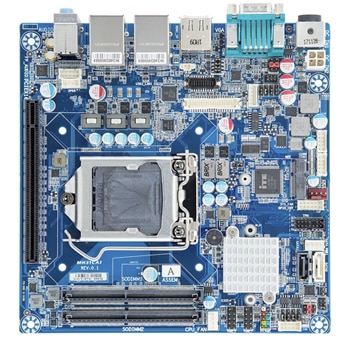

GIGAIPC mITX-H31CA
(Out of Stock)
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features
GIGABYTE mITX-H31CA

- Supports 8th/9th Generation Intel® Core™ Processor (CPU NOT INCLUDED)
- Intel® H310 Express Chipset
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x GbE LAN ports
- 2 x SATA 6Gb/s ports
- HDMI, Display Port, VGA, eDP ports for multiple display
- 2 x RS-232/422/485 and 5V/12V/RI COM ports
- 2 x RS-232 COM ports
- RoHS compliant
Downloads
Product Description
Name
  • Gigabyte mITX-H31CA
    • Processor
  • Support for 9/8th Generation
  • Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
  • TDP under 65W
    • Chipset
  • Intel® H310 Express Chipset
    • System Memory
  • 2‎ x DDR4 SO-DIMM sockets, Max. Capacity 32GB
    • Graphics Integrated Graphics Processor - Intel® HD Graphics support:
  • 1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
  • 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
  • 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
  • 1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz
  • 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
    • * eDP port is alternative with LVDS port, only one can be worked at the same time
    (2 independent display outputs)
    Connectors (rear)
  • 3‎ x Audio jacks (Line in, Line out, Mic in)
  • 1 x COM port (RS-232/422/485 and RI/5V/12V)
  • 1x Display Port
  • 1 x HDMI
  • 1 x VGA
  • 2 x RJ45 LAN ports
  • 4 x USB 3.0
  • 1 x DC Jack (+12V/+19V/+24VDC)
    • Audio
  • Realtek ALC269
  • High Definition Audio
    • Connectors (internal)
  • 1‎ x 4-pin ATX main power connector
  • 1 x SATA power connector
  • 1 x CPU fan header
  • 1 x System fan header
  • 1 x Front panel header
  • 1 x Front panel audio header
  • 1 x 2W Speaker out header
  • 4 x USB 2.0 headers
  • 2 x COM headers (RS-232)
  • 1 x COM header (RS-232/422/485 and RI/5V/12V)
  • 1 x GPIO (8-bits) & SMBUS header
  • 1 x Backlight Control header
  • 1 x Clear CMOS jumper
  • 1 x Buzzer
    • Included
  • IO Shield x 1 (12AIO-MCQ370-00R)
  • SATA Power cable x 2 (25CRI-300B01-K1R)
    • Form Factor
  • mini-ITX
