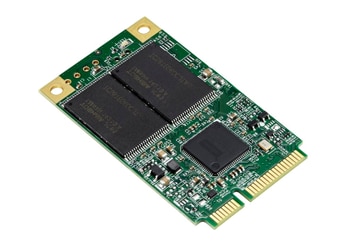

mSATA Innodisk DEMSR-32GDK1GC1SL-B089

mSATA Innodisk DEMSR-32GDK1GC1SL-B089 32GB 3TE7

More: Get Quote

(Out of Stock)

Quantity:

Availability
Usually ships in 24h

Volume quantity
Get Quote

Features

Innodisk mSATA 3TE7 32GB

- 3D TLC Flash type
- SATA-III (6.0 Gb/s) mSATA interface
- Sequential R/W (MB/sec, max.): 560 / 520 MB/s
- Thermal sensor included
- ATA security
- S.M.A.R.T
- 3 Million Hours MTBF
- Operating Temperature: 0C to 70C
- Storage Temperature: -40C to 85C
- Max. Power Consumption: 2W
- L=50.80mm, W=29.8mm, H=3.3mm

Downloads

Specifications

Product Description

Model Name	mSATA 3TE7 DEMSR-32GDK1GC1SL-B089
Interface	SATA III 6.0 Gb/s
Type	Standard
Flash Type	3D TLC
Capacity	32GB
Max. Channels	4
Sequential R/W (MB/sec, max.)	560 / 520
Max. Power Consumption	2W
Thermal Sensor	Y
External DRAM Buffer	N
H/W Write Protect	Optional
ATA Security	Y
S.M.A.R.T.	Y
Dimension (WxLxH/mm)	29.85 x 50.8 x 3.7
Vibration	20G@7~2000Hz
Shock	1500G@0.5ms
MTBF	3 million hours
Storage Temperature	-40°C ~ +85°C
Operation Temperature	Standard Grade: 0°C ~ +70°C
