JETWAY MI08
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features

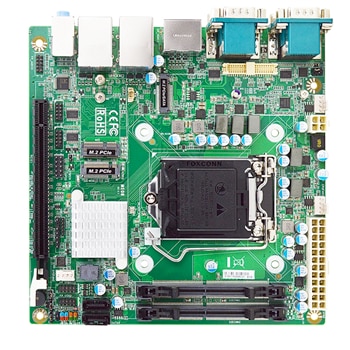

Jetway MI08

- 10th Gen Intel® Core i9 / i7 / i5 / i3 / Pentium / Celeron Processor
- Long-Life Embedded Class with Planned Lifecycle Through Q2'2035
- List of compatible processors
- A Successor to NF693, a seamless transition with Features Upgrade
- Supports up to 2 Displays, HDMI, DP, eDP
- Dual Gigabit LAN, 3 * M.2, 8 * USBs, 6 * COMs
- 2 * DDR4-2933 SO-DIMM up to 64GB, PCI-E x16
- ECO-design for EuP/ErP

Downloads
Product Description

Jetway MI80 mini-itx motherboard

Intel® 10th Gen (Comet lake) Core™ Processors with Q410 chipset




Name
  • Jetway MI80
CPU
  • 10th Gen Intel® Core i9 / i7 / i5 / i3 / Pentium / Celeron Processor up to 65W
  • Socket LGA 1200 (Formerly Comet Lake)
  • CPU support list
Chipset
  • Intel H410
System Memory
  • 2 x 260-pin SODIMM Single Channel DDR4-2933 up to 64GB Total
  • * Core i9 / i7 CPUs support DDR4 up to 2933 MHz
  • * Core i5 / i3 / Pentium / Celeron CPUs support DDR4 up to 2666 MHz
Graphics
  • Requires Intel Core processor with Intel HD Graphics
Connectors (rear)
  • 4x Serial Ports (3 * RS232, 1 * RS232/422/485)
  • 1x DP 1.2 (4096 * 2304 @ 60Hz)
  • 1x HDMI 1.4 (4096 * 2160 @ 30Hz)
  • 2x RJ45 LAN (10/100/1000)
  • 3x USB 3.2 Gen 1 (5 Gb/s)
  • 1x USB 2.0
  • 3x 3.5mm Audio Jack
Audio
  • Realtek ALC888S HD Audio Codec
Connectors (internal)
  • 1x PCI-E 3.0 x16 Slot
  • 2x SATA3 6Gb/s Connector
  • 1x M.2 M-Key, 2242 2280, PCIe and SATA
  • 1x M.2 E-key, 2230 (USB and PCIe Bus for WIFI)
  • 1x M.2 B-key, 3042 3052 (USB and PCIe Bus for SIM)
  • 2x USB Pin Headers for up to 4 additional USB 2.0 Ports
  • 2x Serial Headers (2 * RS232)
  • 1x 40-pin eDP (4096 * 2304 @ 60Hz)
  • 1x Nano SIM Socket (on bottom)
  • 1x 8 bit GPIO Header
  • 1x PS2 Keyboard/Mouse Header
  • 1x Chassis Intrusion Header
  • 1x AT/ATX Mode Jumper
  • 1x 9-pin Front Audio Header
  • 1x 5-pin SMBUS Header
  • 3x 4-pin Fan Header
  • 1x 24-pin ATX Power Connector
  • 1x 4-pin 12V ATX Power Connector
LAN
  • 1 x Intel I219-V PHY Gigabit LAN
  • 1 x Intel I211-AT PCI-E Gigabit LAN
Storage
  • 2 x SATA3 6Gb/s Connector
  • 1 x M.2 (PCIe 3.0 x2 NVMe & SATA, M-key, 2242/2280)
Form Factor
  • mini-ITX
