Jetway-MI225H610
(Out of Stock)
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features

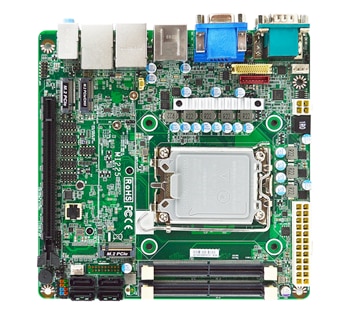

Jetway MI225H610

- Intel® 12th and 13th Gen Processors up to 65W
(CPU NOT INCLUDED)
- List of compatible processors
- Long-Life Embedded Class with Planned Lifecycle Through Q1'2037
- 1 * PCIe 4.0 x16, 1 * M.2 M-key NVMe, 4 * USB 3.2
- 1 * 2.5GbE, 1 * 1GbE, 1 * M.2 B-key, 1 * M.2 E-key, 4 * COMs
- Supports up to 3 Displays, HDMI, DP, VGA, LVDS/eDP
- 2 * DDR5-5600 Dual Channel SODIMM up to 64GB
- Supports BIOS Recovery, ECO-design for EuP/ErP
Downloads
Product Description
Jetway MI225H610
MITX 12/13th Gen Alder Lake Industrial Motherboard
Name
  • Jetway MI225H610
    • Processor
  • Socket LGA1700, Supports 12/13th Gen Intel processors up to 65W, Alder Lake, Raptor Lake
    • Chipset
  • Intel H610
    • System Memory
  • 2 * DDR5-5600 SODIMM Non-ECC up 64GB total, *12th Gen CPU supports DDR5-4800
    • Expansion Slots
  • PCIE 4.0 x16 slot
  • M.2 E-key 2230 (USB2/PCIE)
  • M.2 B-key 3042 with SIM slot for Cellular (PCIE)
    • Video
  • Intel HD Graphics)
    • Connectors (rear)
  • 2 * USB 3.2 Gen2 (10Gb/s), 2 * USB 3.2 Gen1 (5Gb/s), 2 * USB 2.0
  • 2 * RJ45 ports, 2 * Serial (1 * RS232/422/485, 1 * RS232), line-in, line-out, Mic
  • 3 Displays: HDMI 2.0b 4K@60Hz, Displayport 1.4a 4K@60Hz, VGA 1080p, eDP/LVDS combo
    • Network
  • 1 * Intel i219-V gigabit LAN
  • 1 * Intel i225-V 2.5GbE
    • Audio
  • Realtek HD audio
    • Connectors (internal)
  • 2 * USB header for 3 * USB 2.0 ports
  • 4 * Serial headers (RS232)
  • AT/ATX mode, SMBUS, 8bit GPIO, Chassis Intrusion header, PS/2 combo header
  • 24-pin ATX + 4-pin 12V power connectors
    • Other Features
  • Support ACPI S3, AHCI, CPU Smart FAN, Watchdog Timer 10-255 min/sec, TPM2 Optional
    • Form Factor
  • Mini-ITX Form Factor (170mm x 170mm)
