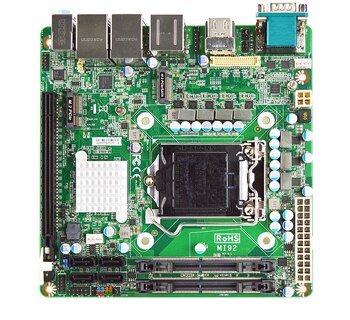

JETWAY MI92-10
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features
Jetway MI92-10

- Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
- CPU support list
- 2 x 260-pin SODIMM Dual Channel DDR4-2933 up to 64GB Total
- PCI-E x16 Slot (Gen 3, x8/x8 Bifurcation), 4 x USB 3.2 Gen 2 (10 Gb/s), 2 x USB 3.2 Gen 1 (5 Gb/s)
- 1 x M.2 M-Key, 2280 (PCIe x4 NVMe and SATA), 1 xM.2 E-key, 2230 (USB and PCIe CNVi WiFi)
- 2 x COM
- 4 x SATA3 6Gb/s Connector for RAID 0/1/5/10
- 1 x 1 x Intel I219-LM PHY Gigabit LAN (iAMT 12.0), 1 x 1 x Intel I211-AT PCI-E Gigabit LAN
- Support 1 x DP 1.2 (4096 * 2304 @ 60Hz), 2 x HDMI 1.4 (4096 * 2160 @ 30Hz)
- Intel fTPM 2.0 (PTT) Trusted Computing Firmware
- Long-Life Embedded Industrial Motherboard with Planned Lifecycle Through Q2’2035
Downloads
Product Description
Jetway MI92-10 mini-itx motherboard

Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset

Name
  • Jetway MI92-10
    • CPU
  • 10th Gen Intel® Core i7 / i5 / i3 / Pentium Processor up to 65W Socket LGA 1200 (Formerly Comet Lake)
  • CPU support list
    • Chipset
  • Intel Q470E
    • System Memory
  • 2x 260-pin SODIMM Dual Channel DDR4-2933 up to 64GB Total

    • - Core i9 / i7 CPUs support DDR4 up to 2933 MHz
    - Core i5 / i3 CPUs support DDR4 up to 2666 MHz
    - Pentium / Celeron CPUs support DDR4 up to 2400 MHz
    Graphics
  • Requires Intel Core processor with Intel HD Graphics
    • Connectors (rear)
  • 2x Serial Ports (2 * RS232/422/485)
  • 2x HDMI 1.4 (4096 * 2160 @ 30Hz)
  • 1x DP 1.2 (4096 * 2304 @ 60Hz)
  • 2x USB 3.2 Gen 1 (5 Gb/s)
  • 2x RJ45 LAN (10/100/1000)
  • 4 x USB 3.2 Gen 2 (10 Gb/s)
  • 3x 3.5mm Audio Jack
    • Audio
  • Realtek ALC662 HD Audio Codec
    • Connectors (internal)
  • 1x PCI-E x16 Slot (Gen 3, x8/x8 Bifurcation)
  • 4x SATA3 6Gb/s Connector for RAID 0/1/5/10

  • 1x M.2 M-Key, 2280 (PCIe x4 NVMe and SATA)
  • 1x M.2 E-key, 2230 (USB and PCIe CNVi WiFi)
  • 1x USB Pin Headers for 2 additional USB 2.0 Ports
  • 1x 40-pin eDP (4096 * 2304 @ 60Hz)
  • 1x 8 bit GPIO Header
  • 1x AT/ATX Mode Jumper
  • 1x 9-pin Front Audio Header
  • 1x 5-pin SMBUS Header
  • 1x 4-pin Fan Header
  • 1x 24-pin ATX Power Connector
  • 1x 4-pin 12V ATX Power Connector
    • Form Factor
  • mini-ITX
