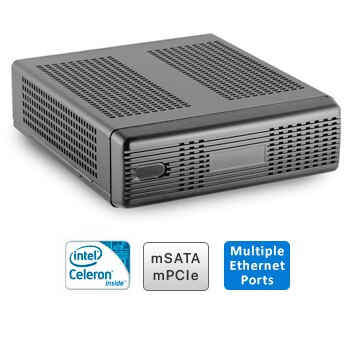

Fully Assembled PC with M350 Enclosure, Jetway-JNF692G4-345 mini-ITX board, 60W, Intel Quad Core Celeron

M350 system with Jetway-JNF692G4-345 mini-ITX Intel Celeron board, 60W power adapter

Availability
Usually ships in 24h

Volume quantity
Get Quote

Features

Fully Assembled PC with M350 Enclosure, Jetway JNF692G4-345 ITX Intel Quad-Core Celeron J3455 mini-ITX board, 60W
- M350 - Smallest, fanless universal Mini-ITX case. Hidden area for USB / WIFI / Storage
- Jetway JNF692G4-345 Mini-ITX motherboard
- Intel Quad-Core Celeron Processor J3455 (up to 2.16 GHz)
- 10w TDP
- 1x SODDR3-L, 8GB Max
- 1x HDMI (Header)
- 3x COM(via Header)
- 2x USB 2.0
- 4x Ethernet Port (Intel i211-AT)
- 2x SATA2 (3.0 Gb/s)
- 1x miniPCI Express (Full-size)
- 1x mSATA (Full-size)
- 2x PCIe x1 (2.0)
- 1x SIM Socket
- External power supply for 12v (2.5mm inner, 5.5mm outer)
- Alternative internal power via 1x2 connector
- Embedded Long-life Series, Lifecycle through Q3'2031
- Dimensions : 170x170mm
- Supports Win10, Linux
- 60W AC-DC Power Adapter
- Just Add RAM and Hard Drive To Complete Your System
- RoHS Compliant

Downloads

Product Description

New! Fully Assembled PC with M350 Enclosure, Intel Quad Core Jetway JNF692G4-345 Intel Quad Core Celeron, 60w AC power adapter

M350 - Smallest, Universal mini-ITX case
- Fanless, natural convection mini-ITX case design
- Hidden area for USB / WIFI / Storage

60W AC-DC Power Adapter

Jetway JNF692G4-345 Mini-ITX motherboard
- Intel Quad-Core Celeron Processor J3455 (up to 2.16 GHz)
- 10w TDP
- 1x SODDR3-L, 8GB Max
- 1x HDMI (Header)
- 3x COM(via Header)
- 2x USB 2.0
- 4x Ethernet Port (Intel i211-AT)
- 2x SATA2 (3.0 Gb/s)
- 1x miniPCI Express (Full-size)
- 1x mSATA (Full-size)
- 2x PCIe x1 (2.0)
- 1x SIM Socket
- External power supply for 12v (2.5mm inner, 5.5mm outer)
- Alternative internal power via 1x2 connector
- Embedded Long-life Series, Lifecycle through Q3'2031
- Dimensions : 170x170mm
- Supports Win10, Linux

Mini-Box M350 Barebone System Windows 10 OS option

Fully Assembled PC with M350 enclosure and Jetway JNF692G4-345 mini-itx motherboard comes with the option to choose Windows separately or preinstalled.

NOTE: Conditions for returning systems with Windows OS preinstalled by Mini-Box.com:
- Refunds are allowed only within 30 days from purchase, a charge of 15% will be applied.
- After 30 days, only exchanges for defective products are allowed (no credits), and it must be with same motherboard.

M3-ATX

Plug-In Smart car PC PSU

- 125 Watts (150watt peak) PSU
- 20pin ATX, 6-24V wide input range
- Programmable timing settings
- Intelligent shutdown controller
- ON/OFF motherboard control
- Survives vehicle engine cranks
- Battery deep discharge prevention
- High efficiency, 125 watts output
- "Anti-Thump" Amplifier remote control
- < 0.5mA standby current
- Solid Polymer capacitors, Japan
- VIA, Intel and AMD CPU support
- manufactured by mini-box.com
- ROHS compliant version
- US Pat. no 7,539,023

Download the M3-ATX utility
(needs Serial Cable Harness for M3-ATX)
Download the Wiring Diagram

Price: $‎69.00

Quantity:

M2-ATX

Smart Car PC Power Supply

- 160 watts output
- Ideal car Power supply for operating Core 2 duo, Celeron, AMD systems
- ATX, 6-24V wide input range
- Intelligent shutdown controller
- ON/OFF motherboard control
- Survives vehicle engine cranks
- Battery deep discharge prevention
- High efficiency, 160 watts output
- "Anti-Thump" Amplifier remote control - 15A automotive fuse (mini-blade)
- VIA, P4 and AMD CPU support
- manufactured by mini-box.com
- ROHS compliant version

Price: $‎69.00

Quantity:

12v/5A 60W AC-DC Power Adapter

AC-DC 12V, 5A / 60 Watt Switching Power Adapter (110/220V)

- High efficiency, level VI
- 0.21 watt no load power consumption
- High reliability (Japan Capacitor)
- INPUT:100~240Vac
- OUTPUT:12V 5A 60W Max.
- Power Cord included
- 5mm/2.5mm barrel power jack
- 1.5x 2 x 4.5 in
- Manufactured by EDAC
- RoHS compliant

Price: $‎25.00

Quantity:
