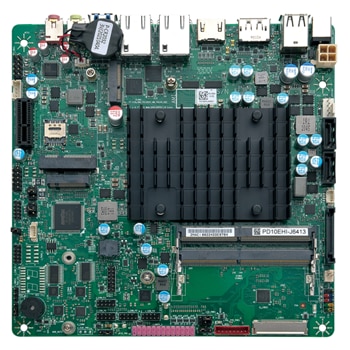

Mitac-PD10EHI-N6211
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features
- Intel® Elkhart Lake ATOM/Celeron/Pentium BGA Processor (TDP up to 12W)
- Ultra Thin Form Factor (Height: 0.79in/20mm)
- Support 2 x DDR4 SO-DIMM (Up to 64GB)
- Support Triple Display for HDMI, DisplayPort, and LVDS/eDP
- Support 1 x PCIe X1 (Gen 2) slot, 2 x M.2 slot, 2 x SATA III and 1 x mPCIe slot
- 4 x USB2.0, 2 x USB3.1 Gen2, 6 x COM and 1 x Parallel Port / MiAPI (configurable digital I/O)
- 8V~24V wide voltage power input
Mitac PD10BI serves as the perfect replacement for Intel DN2800MTE. PD10EHI is available until at least Q4/2027.
Downloads
Product Description
Name
  • PD10EHI-N6211
Processor
  • Intel® Elkhart Lake Celeron N6211 Processor
    		•
    Chipset
    • Intel® SoC Integrated
    System Memory
    • DDR4 3200 MHz / 2 x 260-pin SO-DIMM /

    • Max. 32GB (Non-ECC)
    Graphics
    • Intel® HD Graphics
    Power
    • 1 x 4-pin ATX Power Connector / 1 x 8~24V
    • 4-pin Power Connector
    Connectors (rear)
    • 2 x USB 2.0 / 2 x USB 3.1 Gen 2
    • 1 x HDMI 1.4 / 1 x DisplayPort 1.4
    • 1 x Mic-in / 1 x Line-out
    • 2 x RJ-45
    Connectors (internal)
    • 1 x SATA power header / 2 x SATAIII (Multiplexed with M.2 and mSATA ports)
    • 2 x USB 2.0
    • 1 x Backlight Connector / 1 x LVDS / 1 x eDP
    • 1 x Stereo Speaker Header / 1 x Audio Header (Front Panel Mic-in & Line-out)
    • 2 x RS232 / (Extra 1 x RS232/422/485
      Header + 3 x RS232 Header for Option.
      Max. 6 x COM by Option)
    • 1 x Parallel Port Header (Optional) / 1 x MiAPI Header
    Included
    • 1 x Motherboard / 1 x 50 cm SATA Cable / 1 x 45 cm SATA Power Cable
      2 x I/O Bracket (Half and Full Height)
      1 x Quick Installation Guide
