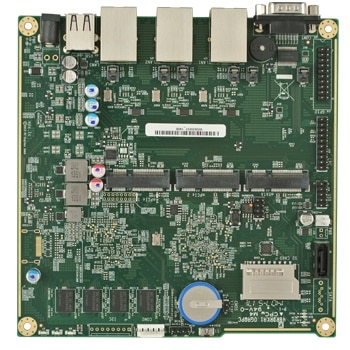

APU.2E4 (GX-412TC quad core / 4GB / 3 Intel GigE / 2 miniPCI express / mSATA / USB / RTC battery) ****4GB****
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features
APU.2E4 Board with 3 GigE, 2 miniPCIe, 1 mSATA, and USB

- AMD Embedded G Series: GX-412TC
- 1 GHz Quad Core / 64Bit / 2 MB L2 Cache
- Built in 4GB DDR3 1333 DRAM
- 2 USB 3.0, 1 COM
- RTC battery
- Built-in DC-DC converter
- Consumes only ~6watts
- **Heat spreader included
- RoHS compliant
- Size: 152.4 x 152.4mm (6x6 in)
Downloads
Product Description
APU.2E4 Board with 3 GigE, 2 miniPCIe, 1 mSATA, and USB

AMD Embedded G Series: GX-412TC
1 GHz Quad Core / 64Bit / 2 MB L2 Cach
Built in 4GB DDR3 1066 DRAM
USB port / RTC battery
Storage: SD Card, USB, mSATA
Power: DC jack, min. 6-12W of 12V DC power
Expansion: 2x miniPCI express slot, LPC bus, COM2
Connectivity: 3 Gigabit Ethernet channels (i210AT), 1x DB9 serial port
Board size: 152 x 152mm (6x6in)
Firmware: Core boot open source system BIOS. Support iPXE and USB boot.


Black enclosure recommended for additional cooling

Heat spreader guide
