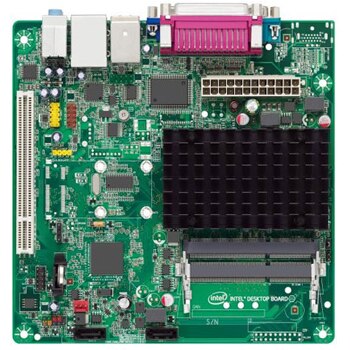

Intel D2500HN Mini-ITX


More: Get Quote
Quantity:
* FREE US Shipping. Details
Availability: Usually ships in 24h

Features
- Dual Atom D2500  2x1.86Ghz
- Intel NM10 Chipset
- 2x DDR3 SO-DIMM (max 4GB)
- 2x SATA (3GBs)
- 1x PCI
- 1x Parallel / 1x VGA / 1x COM
- 4 USB 2.0
- 1x LAN 10/100/1000MBit
- Recommended PSU: picoPSU-80
Product Description

Name
  • D2500HN
  • Processor
  • Intel Atom Processor D2500 (Dual Core)
  • 1.86GHz
  • Chipset
  • Intel NM10 Express Chipset
  • L2 Cache
  • 512 KB x 2 L2 Cashe
  • System Memory
  • Single channel DDR3 1066/800 MHz
  • 2x DIMMs  (max 4GB)
  • Graphics
  • Integrated graphic VGA
  • Power
  • 24 Pin ATX
  • Connectors (rear)
  • 1x VGA / 1x COM / 1x Parallel
  • 1x LAN 10/100/1000MBit (Realtek)
  • 3x Sound (Line Out, Line In, Microphone)
  • 1x PS2
  • 4x USB2.0
  • Audio
  • Realtek High Definition Audio (ALC) Incl multi-stream support
  • Connectors (internal)
  • 1x PCI
  • AUDIO (Front panel)
  • 4x USB
  • 2x SATA (3GBs)
  • 2x COM (Serial)
  • Included
  • Drivers CD
  • I/O ATX rear plate
  • 2x SATA cable
  • Form Factor
  • mini-ITX (170mm X 170mm)
  • Passive thermal solution
