Low Profile LGA1151/1150/1200 Intel Core i3/i5/i7 CPU Cooler

DYNATRON U8 HEATSINK AND FAN FOR LGA 1700/1200, AMD AM5/AM4

Quantity:

Availability
Usually ships in 24h

Volume quantity
Get Quote

Features

Dynatron Low Profile CPU Cooler U8

- Intel® Socket LGA 1700/1200/115X Processor
- AMD® Socket AM5/AM4 Processor
- Dimension: 93.4 x 95.0 x 35.2 mm
- Weight: 392g (Fan + Heatsink)
- Bearing: Double Ball
- Fan: 92.0 x 92.0 x 12.0 mm Axial fan with PWM Function
- Speed: 3600 ± 10% RPM
- Acoustical Noise:
At Duty Cycle 0~20%: 22.3 dBA
At Duty Cycle 50%: 26.1 dBA
At Duty Cycle 100%: 36.2 dBA

Downloads

Product Specification

Product Description

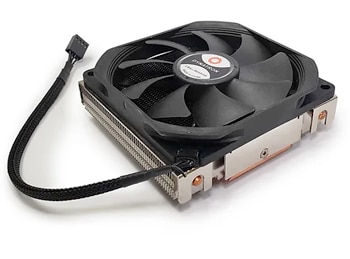

Dynatron Low Profile CPU Cooler U8

Recommend for Intel® and AMD® CPU as following : Intel® Socket LGA 1700/1200/115X Processor & AMD® Socket AM5/AM4 Processor

Active Cooler for Mini ITX Application & Up - Intel® Socket LGA 1700/1200/115X Processor

- AMD® Socket AM5/AM4 Processor
- Dimension: 93.4 x 95.0 x 35.2 mm
- Weight: 392g (Fan + Heatsink)
- Bearing: Double Ball
- Fan: 92.0 x 92.0 x 12.0 mm Axial fan with PWM Function
- Speed: 3600 ± 10% RPM
- Acoustical Noise:
At Duty Cycle 0~20%: 22.3 dBA
At Duty Cycle 50%: 26.1 dBA
At Duty Cycle 100%: 36.2 dBA
