MBD-J-JMTX-ADN1 LGA 1700

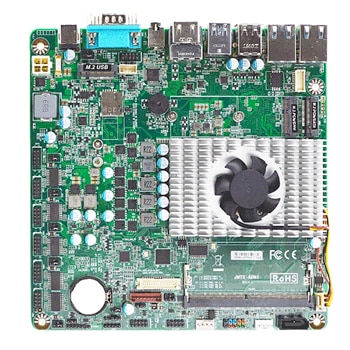

Jetway-JMTX-ADN1

Quantity:

Availability
Usually ships in 24h

Volume quantity
Get Quote

Features

Jetway JMTX-ADN1-N97002
- Intel® Processor N97 6M Cache, up to 3.60 GHz
- Long-Life Embedded Class with Planned Lifecycle Through Q1'2038
- 2 * Intel I226-V PCIe 2.5GbE
- 1 * DDR5-4800MHz Single Channel SO-DIMM up to 32GB
- 1 * M.2 M-key, 2242/2280 (SATA/PCIe 3.0 x2 NVMe)
- 1 * M.2 B-key, 3042/3052 (USB 3.2/USB 2.0) paired with 1 * SIM
- 1 * M.2 E-key, 2230 (PCIe 3.0 x1/USB 2.0)
- 1 * TPM 2.0 3.5" - 12~28V DC-In & Supports BIOS Recovery

Downloads

Product Description

Jetway JMTX-ADN1-N97002

Name	Jetway JMTX-ADN1-N97002
Processor	Intel® Processor N97, up to 3.60 GHz, 4-Core 4-Thread, 12W TDP (Products formerly Alder Lake-N)
System Memory	1 x 262-pin Single Channel DDR5-4800 SO-DIMM up to 32GB Total
Audio	Realtek ALC897 HD Audio, 3W Amplifier
Graphics	Intel® UHD Graphics Up to 3 Displays
Connectors (rear)	2x RJ45 LAN (10/100/1000/2500) 2x USB 2.0 Port 1x USB 3.2 Gen 2 (10 Gb/s) 1x USB 3.2 Gen 2 (10 Gb/s) Type-C with DP 1.4 (4096 x 2304 @ 60Hz) 2x HDMI 2.0b (4096 * 2160 @ 60Hz) 1x 3.5mm Combo Line-out/MIC Jack 1x Serial Port (1 * RS232/422/485) 1x +12V - 28V 2.5mm Diameter DC Power Jack
Lan	2 x Intel I226-V PCIe 2.5GbE
Storage	1 x SATA3 6Gb/s 1 x M.2 (SATA/PCIe 3.0 x2, M-key, 2242 2280 NVMe)
Onboard I/O Connectors	SATA3 6Gb/s Connector 1x M.2 M-Key, 2242/2280 (SATA/PCIe 3.0 x2 NVMe) 1x M.2 B-key, 3042/3052 (USB3.2/USB2.0 for 3G/LTE Modem) 1x M.2 E-key, 2230 (PCIe 3.0 x1/USB 2.0/CNVi for WiFi) 5x Serial Headers (5 * RS232) 2x USB Pin Headers for 4 additional USB 2.0 Ports 1x LVDS/eDP (1920 * 1200 @ 60Hz) 1x Inverter 1x Nano SIM Socket 1x 8 bit GPIO Header 1x 4-pin SMBUS Header 2x 4-pin Fan Header 1x 9-pin Front Audio Header 1x Speaker Header 1x PS2 Keyboard/Mouse Header 1x Chassis Intrusion Header 1x AT/ATX Mode Jumper 1x 4-pin SATA Power Output (Male) 1x 4-pin Alternate Power-in Connector
TPM	Intel fTPM 2.0 (PTT) Onboard NUVOTON TPM v2.0
Other Features	Operating Temperature : 0 ~ 60°C Storage Temperature : -20 ~ 85°C Humidity: 10% ~ 90% RH @40°C (non-condensing)
Form Factor	Mini-ITX Form Factor (170mm x 170mm)
