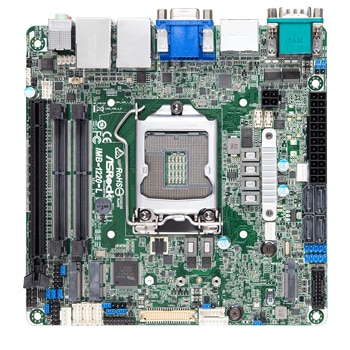

ASRock-IMB-1220-L
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features
ASRock IMB 1220-L

- Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
- 2 x 260-pin SO-DIMM Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 64GB
- 1 x PCIe x16 Gen3, 6 x USB 3.2 Gen1, 4 x USB 2.0
- 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B
- 5 x COM
- 4 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
- Support Triple display, 1 x DP 1.2, 1 x VGA, 1 x LVDS. 1 x HDMI 2.0a
- TPM 2.0 onboard
- Special Feature: Supports Intel® vPro, AMT, RAID 0/1/5/10
- ATX-PWR (24+4-pin)
Downloads
Product Description
ASRock 1220-L mini-itx motherboard<

Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset

Name
  • ASRock-1220-L
    • CPU
  • Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
  • *The performance of CPUs over 80W will be limited due to power design.
    • Chipset
  • Intel Q470E
    • System Memory
  • Dual Channel DDR4 2933 / 2666 / 2400 MHz

    • - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz

    - Intel Core i5/i3 CPUs support DDR4 up to 2666 MHz

    - Intel Pentium/Celeron CPU support DDR4 up to 2400 MHz
  • 64GB (32 GB per DIMM)
    • Graphics
  • Intel® UHD Graphics
    • Power
  • ATX PWR (24+4-pin)
    • Connectors (rear)
  • 1x HDMI
  • 1x Display Port 1.2
  • 1 x VGA
  • 2 x COM (RS-232/422/485)
  • 4 x USB 3.2 (Gen1)
  • 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
  • 2 (Mic-in, Line-out)
    • Audio
  • Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in
    • Connectors (internal)
  • 2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
  • 4 x USB 2.0 (2 x 2.54 pitch header)

  • 3 x COM (RS-232)
  • 4 x GPI, 4 x GPO
  • TPM 2.0 onboard
  • 1 x LVDS
  • 1 x Speaker Header
  • 1 x SATA PWR Output
    • Included
  • 3 x SCREW M2,D=5 (13G020302031AK)
  • 1 x NUT M2 H=3.35mm (13G020271020AK)
  • 1 x NUT M2 H=6.5mm (13G0201950B0AK)
  • 1 x I/O Shield (13G020624000AK)
    • Form Factor
  • mini-ITX
