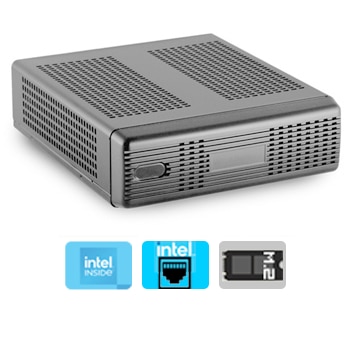

Fully Assembled PC with M350 Enclosure, Jetway-JMTX-ADN1 mini-ITX board, 60W, Intel Processor N97

M350 system with JMTX-ADN1 mini-ITX Intel Processor board, 60W power adapter

Availability
Usually ships in 24h

Volume quantity
Get Quote

Features

Fully Assembled PC with M350 Enclosure, Jetway JMTX-ADN1 ITX Intel Processor N97 mini-ITX board, 60W
- M350 - Smallest, fanless universal Mini-ITX case. Hidden area for USB / WIFI / Storage
- Jetway JMTX-ADN1 Mini-ITX motherboard
- Intel Processor N97 (up to 3.6 GHz)
- Long-Life Embedded Class with Planned Lifecycle Through Q1'2038
- 2 * Intel I226-V PCIe 2.5GbE
- 1 * DDR5-4800MHz Single Channel SO-DIMM up to 32GB
- 1 * M.2 M-key, 2242/2280 (SATA/PCIe 3.0 x2 NVMe)
- 1 * M.2 B-key, 3042/3052 (USB 3.2/USB 2.0) paired with 1 * SIM
- 1 * M.2 E-key, 2230 (PCIe 3.0 x1/USB 2.0)
- 1 * TPM 2.0 3.5" - 12~28V DC-In & Supports BIOS Recovery
- 60W AC-DC Power Adapter
- Just Add RAM and Hard Drive To Complete Your System
- RoHS Compliant

Downloads

Product Description

New! Fully Assembled PC with M350 Enclosure, Intel N97 Jetway JMTX-ADN1 motherboard, 60w AC power adapter

M350 - Smallest, Universal mini-ITX case
- Fanless, natural convection mini-ITX case design
- Hidden area for USB / WIFI / Storage

60W AC-DC Power Adapter

Jetway JMTX-ADN1 Mini-ITX motherboard
- Intel N97 Processor (up to 3.6 GHz)
- 12w TDP
- 1 x 262-pin Single Channel DDR5-4800 SO-DIMM up to 32GB Total
- 2x RJ45 LAN (10/100/1000/2500)
- 2x USB 2.0 Port
- 1x USB 3.2 Gen 2 (10 Gb/s)
- 1x USB 3.2 Gen 2 (10 Gb/s) Type-C with DP 1.4 (4096 x 2304 @ 60Hz)
- 2x HDMI 2.0b (4096 * 2160 @ 60Hz)
- 1x 3.5mm Combo Line-out/MIC Jack
- 1x Serial Port (1 * RS232/422/485)
- 1x +12V - 28V 2.5mm Diameter DC Power Jack
- Embedded Long-life Series, Lifecycle through Q1'2038
- Dimensions : 170x170mm

Mini-Box M350 Barebone System Windows 10 OS option

Fully Assembled PC with M350 enclosure and Jetway JMTX-ADN1 mini-itx motherboard comes with the option to choose Windows separately or preinstalled.

NOTE: Conditions for returning systems with Windows OS preinstalled by Mini-Box.com:
- Refunds are allowed only within 30 days from purchase, a charge of 15% will be applied.
- After 30 days, only exchanges for defective products are allowed (no credits), and it must be with same motherboard.

M3-ATX

Plug-In Smart car PC PSU

- 125 Watts (150watt peak) PSU
- 20pin ATX, 6-24V wide input range
- Programmable timing settings
- Intelligent shutdown controller
- ON/OFF motherboard control
- Survives vehicle engine cranks
- Battery deep discharge prevention
- High efficiency, 125 watts output
- "Anti-Thump" Amplifier remote control
- < 0.5mA standby current
- Solid Polymer capacitors, Japan
- VIA, Intel and AMD CPU support
- manufactured by mini-box.com
- ROHS compliant version
- US Pat. no 7,539,023

Download the M3-ATX utility
(needs Serial Cable Harness for M3-ATX)
Download the Wiring Diagram

Price: $‎69.00

Quantity:

M2-ATX

Smart Car PC Power Supply

- 160 watts output
- Ideal car Power supply for operating Core 2 duo, Celeron, AMD systems
- ATX, 6-24V wide input range
- Intelligent shutdown controller
- ON/OFF motherboard control
- Survives vehicle engine cranks
- Battery deep discharge prevention
- High efficiency, 160 watts output
- "Anti-Thump" Amplifier remote control - 15A automotive fuse (mini-blade)
- VIA, P4 and AMD CPU support
- manufactured by mini-box.com
- ROHS compliant version

Price: $‎69.00

Quantity:

12v/5A 60W AC-DC Power Adapter

AC-DC 12V, 5A / 60 Watt Switching Power Adapter (110/220V)

- High efficiency, level VI
- 0.21 watt no load power consumption
- High reliability (Japan Capacitor)
- INPUT:100~240Vac
- OUTPUT:12V 5A 60W Max.
- Power Cord included
- 5mm/2.5mm barrel power jack
- 1.5x 2 x 4.5 in
- Manufactured by EDAC
- RoHS compliant

Price: $‎25.00

Quantity:
