Mitac PD14RI-D-N3160
Quantity:
Availability
Usually ships in 24h

Volume quantity
Get Quote
Features

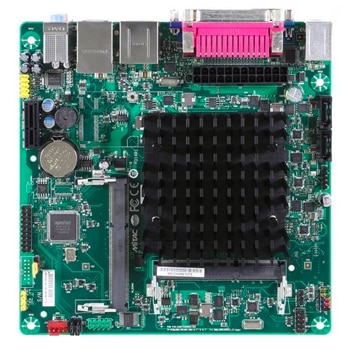

MITAC PD14RI Mini-ITX Motherboard

- Intel® Celeron N3160 processor
- 2 x DDR3L SO-DIMM and support up to 8GB
- Support dual display for HDMI and VGA
- Support 1 x PCIe X1 (Gen 2) slot and Mini PCIe slot
- 2 x SATA III
- 1 x Gigabit Ethernet
- 3 x USB 2.0, 4 x USB 3.0, 2 x COM and 1 x Parallel Port
- ATX power input
- Recommended PSU: picoPSU-80
Downloads
Product Description
MITAC PD14RI-N3160 Mini-ITX Motherboard

Name
  • MITAC PD14RI-D
    • Processor
  • Intel Celeron Processor N3160 (Quad Core)
  • 1.6-2.24GHz
    • Chipset
  • Intel® SoC Integrated
    • L2 Cache
  • 512 KB x 2 L2 Cache
    • System Memory
  • DDR3L 1600MHz / 2 x 204-pin SO-DIMM
  • Max. 8GB (Non-ECC)
    • Graphics
  • Intel® HD Graphics
    • Power
  • 24 Pin ATX
    • Connectors (rear)
  • 1x VGA
  • 1x HDMI
  • 1x LAN RJ-45
  • 2 x PS/2 (MS / KB Combo)
  • 1 x RS232 Serial port
  • 4x USB3.0
  • 1 x Mic-in / 1 x Line-out / 1 x Line-in
    • Audio
  • Realtek® ALC662
    • Connectors (internal)
  • 2 x SATAIII
  • 3 x USB 2.0
  • 1 x Audio Header (Front Panel Mic-in & Line-out)
  • 1 x RS232
  • 1 x MiAPI Header
  • 1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header
    • Included
  • 1 x Motherboard
  • 1 x 50 cm SATA Cable
  • 1 x Quick Installation Guide
  • 1 x I/O Bracket
    • Form Factor
  • mini-ITX (170mm X 170mm)
