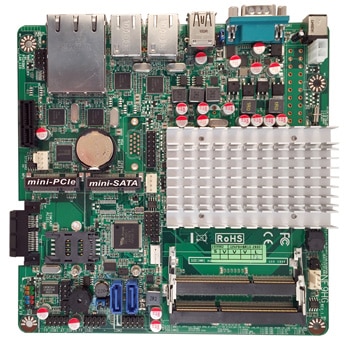

Jetway-JNF9HG-2930 CELERON


More: Get Quote
Quantity:
Availability: Usually ships in 24h
(Out of Stock)

Features
- Intel Quad Core Celeron 1.86GHz (2.16 GHz Burst)
- 7.5w TDP / 4.5w SDP
- 2x SODDR3-L, 8GB Max
1x COM, 1x VGA (via Header)
1xUSB 2.0, 1x USB 3.0
4x Ethernet Port (Intel i211-AT)
- 2x SATA2 (3.0 Gb/s)
- 1x miniPCI Express (Full-size) + 1x miniSATA (Full-size)
- 2x PCIe x1 (2.0)
- 1x 3G SIM Socket
- External power supply for 12v (2.5mm inner, 5.5mm outer)
- Alternative internal power via 1x2 connector
- Embedded Long-life Series, Lifecycle through Q1'2022
- Dimensions : 170x170mm
- Supports Win7, Win8.1, Linux
Product Description
Processor
  • Intel Celeron JNF9HG-2930
  • Expansion Slot
  • 2x PCIe x1, 1x miniPCI-e
  • System Memory
  • 2x SODDR3
  • Expandable to 8 GB
  • Support SODDR3L
  • Storage
  • 1x SATA II, 1x SATA III
  • LAN
  • 4x Gigabit Ethernet
  • Audio
  • Realtec ALC662 2.1 CH HD codec
  • Rear I/O
  • DC-IN Jack
  • 2x USB
  • 4x Ethernet Ports
  • 1x COM Port
  • PS/2 keyboard/mouse
  • Internal I/O
  • Sim Card socket
  • 1x Serial Port Header
  • 1x 8 bit GPIO Header
  • 1x VGA Header
  • PS/2 KB/MS Header
  • Market Support
  • Security, Panel PC, POS, Kiosk, Thin Client
  • Related Items
    M350 Universal Mini-ITX enclosure

    M350 Universal Mini-ITX case

     4pin mini-Din AC adapters compatible

    - Enclosure available with PSU kit
    - Smallest, Universal mini-ITX case
    - Fanless, natural convection mini-ITX case design
    - Hidden area for USB / WIFI / Storage
    - Smart power button
    - Vesa, DIN-Rail, Wall Mount chassis options
    - SMA antenna hole
    - Up to two 2.5" drives, **one HDD bracket included**

     (additional mounting bracket)
    - Size 192 x 210 x 62mm
    - Volume (L) = 2.5L
    - Area for custom OEM logo

    - Superior RFI shielding capabilities
    - **Enclosure requires Low Profile Coolers for Intel Socket CPUs
    - ROHS compliant
    Price: $‎44.95
    Quantity:
    12v/5A 60W AC-DC Power Adapter

    AC-DC 12V, 5A / 60 Watt Switching Power Adapter (110/220V)

    - High efficiency, level VI
    - 0.21 watt no load power consumption
    - High reliability (Japan Capacitor)
    - INPUT:100~240Vac
    - OUTPUT:12V 5A 60W Max.
    - Power Cord included
    - 5mm/2.5mm barrel power jack
    - 1.5x 2 x 4.5 in
    - Manufactured by EDAC
    - RoHS compliant
    Price: $‎25.00
    Quantity:
    SODIMM DDR3L 4GB

    SODIMM DDR3L  4GB Low Power

    - 204 Pins
    - DDR3 PC3 - 10600
    - 1.35V CL9
    - Unbuffered Non EEC
    - Compatible with Intel NUCs
    Price: $‎29.00
    Quantity:
    mSATA Innodisk DEMSR-32GDK1GC1SL-B089

    Innodisk mSATA 3TE7 32GB

    - 3D TLC Flash type
    - SATA-III (6.0 Gb/s) mSATA interface

    - Sequential R/W (MB/sec, max.): 560 / 520 MB/s
    - Thermal sensor included
    - ATA security
    - S.M.A.R.T
    - 3 Million Hours MTBF
    - Operating Temperature: 0C to 70C
    - Storage Temperature: -40C to 85C
    - Max. Power Consumption: 2W
    - L=50.80mm, W=29.8mm, H=3.3mm
    Price: $‎29.00
    Quantity:
    mSATA Innodisk DEMSR-64GDK1GC1SL-B089

    Innodisk mSATA 3TE7 64GB

    - 3D TLC Flash type
    - SATA-III (6.0 Gb/s) mSATA interface
    - Sequential R/W (MB/sec, max.) 560 / 520
    - 3 Million Hours MTBF
    - Operating Temperature: 0C to 70C
    - Storage Temperature: -40C to 85C
    - Supports S.M.A.R.T., ATA Security
    - L=50.80mm, W=29.85mm, H=3.7mm
    Price: $‎49.00
    Quantity:
    2Pin - 4Pin Mini Molex Cable

    2Pin - 4Pin Mini Molex Cable

    - P2 to P4 Molex Power Cable
    - 11 in / 279 mm in length
    - RoHS compliant
    Price: $‎2.15
    Quantity:
